Knife Gate Valves > Bi Directional Knife Gate Valves
Bi Directional Knife Gate Valves

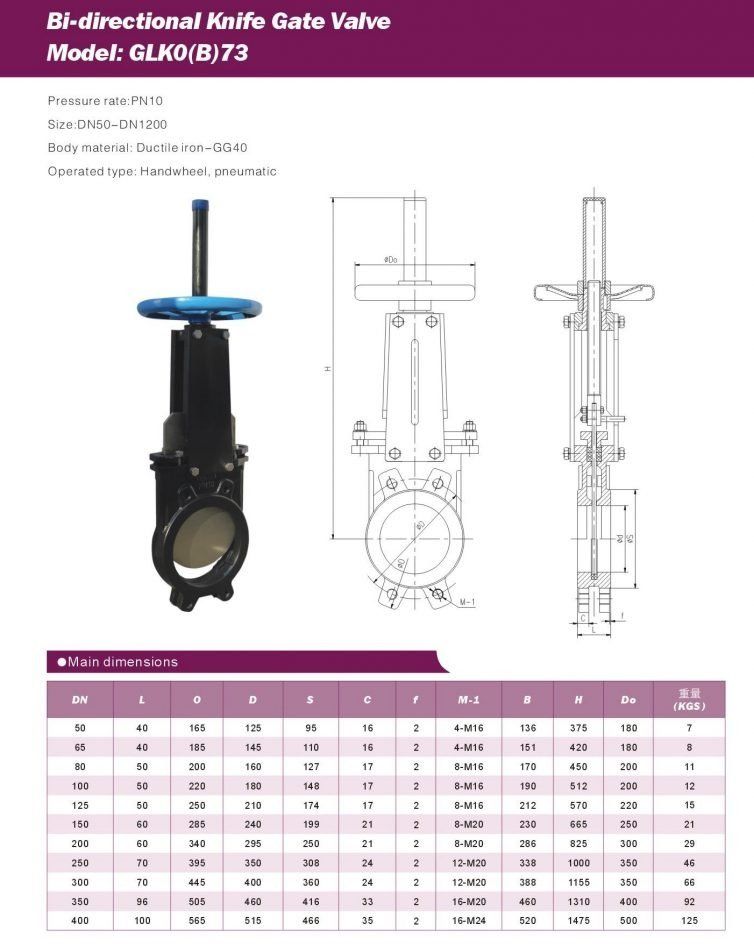

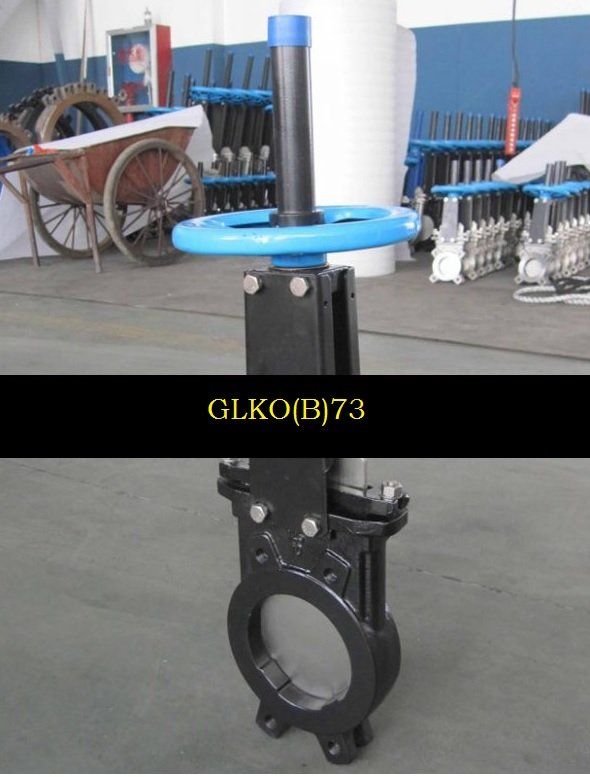

Model: WAK-GLK0 (B) 73

The GLK0(B)73 model knife gate is a bi-directional valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries.

Bidirectional Knife Gate Valve Specifications

Size range:DN50-DN1200

Standard:EN1092 PN10

Material: Ductile iron GGG40+Epoxy Powder Coating

Knife Material: SS304/SS316

Stem Material: SS420/SS304/SS316

Seat Material: EPDM/NBR/Vition

Operation: Handwheel,Gear,Air actuated,Electric actuated
