Size: 1/4~4"
Working pressure: 1.6-6.4mPa
Temperature range: -20°C ~ 232°C ~ 350°C
Suitable medium: water, oil, air, some corrosive liquid
Thread type: ZG.G, NPT, BSPT, BSP, DIN259/2999
We can also manufacture similar products according to your special requirements
| Product name
|
2

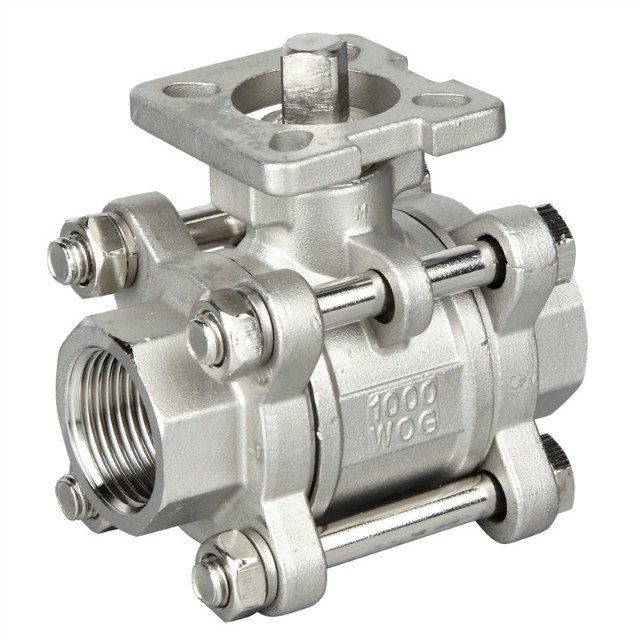

PC STAINLESS STEEL BALL VALVE
|
| Material
|
SS304, 304L, 316, 316L
|
| Size
|
1/4
”
-4
”
&DN6-DN100
|
| Certificate
|
ISO9001: 2000,CE
|
| Working pressure
|
1000psi(6.4MPa)
|
| Connection Ends
|
Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW).
|
| Suitable medium
|
Water, gas, air and some corrosive liquid
|
| Temperature Range
|
-20-300 degree C
|
| Investment
|
casting body and cap
|
| Sealing
|
PTFE, RPTFE, PPL
|
| stem
|
SS304,SS316 Adjustable stem packing,
|
| Locking
|
option
|
| Our advantage
|
Survival by quality and development by credibility.
Quality first, customer upmost !
|
|
100% leakage tested at 100 psi air under water
|
|
Blow-out proof stem, ball are made of ss316 or customer request
|
|
Pure Teflon seals and seats
|
|
|
